Pipecat Integration

Build AI-powered voice agents with Vobiz telephony and Pipecat framework.

What you'll build:

An outbound calling system with real-time AI conversations powered by OpenAI (STT → LLM → TTS), automatic call recording, and bidirectional audio streaming.

Overview

This integration combines Vobiz telephony infrastructure with Pipecat voice agent framework to create intelligent AI-powered phone calls.

Call flow:

Integration Flow

curl POST → Vobiz API → Call initiated → Call answered →
Vobiz requests XML → Server returns WebSocket URL →
Audio streams → Pipecat bot (STT → LLM → TTS) →
AI conversation + Recording saved

Features

•
AI Voice Conversations
Natural conversations powered by OpenAI GPT + TTS/STT
•
Outbound Calling
Trigger calls via REST API from anywhere
•
Automatic Recording
All conversations automatically recorded and saved
•
Real-time Streaming
Bidirectional audio via WebSockets

Prerequisites

✓
Vobiz Account with Auth ID and Auth Token → Sign up
✓
OpenAI API Key for LLM, STT, and TTS → Get API key
✓
Python 3.10+ installed on your system
✓
ngrok for local development → Download ngrok

Installation

Step 1: Clone the Repository

Clone Repository

git clone https://github.com/vobiz-ai/Vobiz-Pipecat
cd Vobiz-X-Pipecat

Step 2: Install Dependencies

Install Dependencies

pip install -r requirements.txt

Note: This will install FastAPI, Pipecat, OpenAI SDK, and other required packages.

Step 3: Configure Environment

Create a .env file in the project root:

.env File

OPENAI_API_KEY=sk-...
VOBIZ_AUTH_ID=MA_XXXXXXXX
VOBIZ_AUTH_TOKEN=your-token-here
PUBLIC_URL=https://your-ngrok-url.ngrok-free.app

Where to find these values:

OPENAI_API_KEY - OpenAI Platform → API Keys
VOBIZ_AUTH_ID - Vobiz Console → Account Settings
VOBIZ_AUTH_TOKEN - Vobiz Console → Account Settings
PUBLIC_URL - Your ngrok URL (set in Step 2 of Usage)

Usage

Step 1: Start the Server

Start FastAPI Server

python server.py

Server will run on http://0.0.0.0:7860

Step 2: Start ngrok

In a new terminal, expose your local server:

Start ngrok Tunnel

ngrok http 7860

Copy the ngrok URL from the output (e.g., https://abc123.ngrok-free.app)

Important: Update PUBLIC_URL in your .env file with this ngrok URL, then restart the server.

Step 3: Make a Call

Initiate an AI-powered call using the Vobiz API:

Initiate Call

curl -X POST https://api.vobiz.ai/api/v1/Account/YOUR_AUTH_ID/Call/ \
  -H "X-Auth-ID: YOUR_AUTH_ID" \
  -H "X-Auth-Token: YOUR_AUTH_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "from": "+918011223344",
    "to": "+919148223344",
    "answer_url": "https://your-ngrok-url.ngrok-free.app/answer",
    "answer_method": "POST"
  }'

What happens next:

Phone rings at the "to" number
When answered, Vobiz requests XML from your server
Server returns WebSocket URL
Audio streams to Pipecat bot
AI assistant speaks and listens
Conversation is automatically recorded

Receiving Inbound Calls

Configure your Vobiz number to handle incoming calls with your Pipecat agent.

Step 1: Access Applications

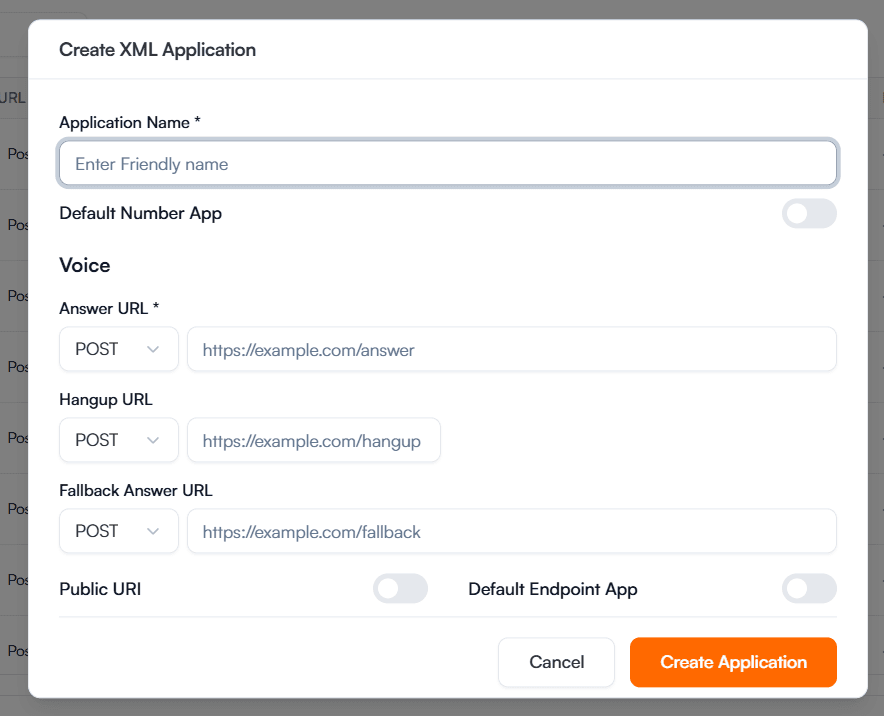

Step 2: Create Application

Click "Create New Application" and give it a name (e.g., "Pipecat Agent").

Step 3: Configure URLs

Set the Answer URL to your ngrok URL (e.g., https://.../answer) and select POST method. You can use the same URL for Hangup or leave it blank.

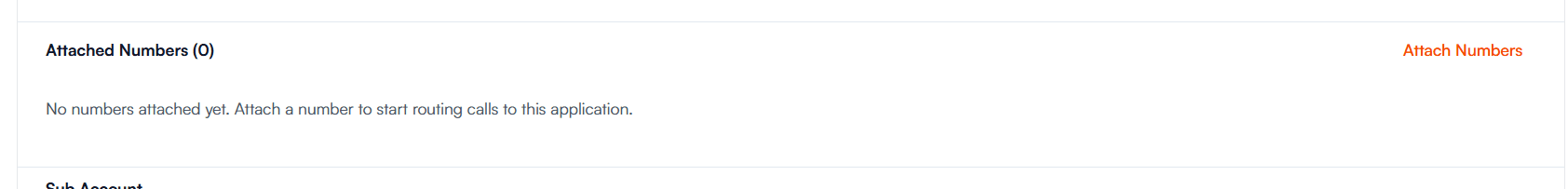

Step 4: Attach Number

Go to "Phone Numbers", select your number, and assign it to the application you just created.

Success: Calls to your Vobiz number will now be handled by your local Pipecat server!

Quick Reference

Server Endpoints

Endpoint	Method	Description
/answer	POST	Called by Vobiz when call is answered. Returns XML with WebSocket URL.
/ws	WebSocket	WebSocket endpoint for bidirectional audio streaming.
/recording-finished	POST	Called by Vobiz when recording stops. Logs recording details.
/recording-ready	POST	Called by Vobiz when recording file is ready. Auto-downloads the MP3.

Customizing the Bot

Edit bot.py to customize your AI assistant:

Change Bot Personality

messages = [
      {
          "role": "system",
          "content": "You are a friendly customer service agent..."
      },
  ]

Change TTS Voice

tts = OpenAITTSService(
      api_key=os.getenv("OPENAI_API_KEY"),
      voice="nova",  # Options: alloy, echo, fable, onyx, nova, shimmer
  )

Resources

Vobiz Documentation

External Resources

Integration complete!

You can now make AI-powered phone calls with Vobiz and Pipecat.

Next Steps:

Customize your AI assistant's personality in bot.py
Deploy to production (AWS/GCP/Heroku) instead of ngrok
Add custom business logic and integrations
